Introduction to Chemical Etching

Chemical etching, also known as photochemical machining, is a subtractive manufacturing process that uses chemical solutions to remove material. It is a precise method used to create intricate metal parts. Unlike traditional machining, which often involves mechanical force, chemical etching uses controlled chemical reactions to dissolve material selectively. This makes it ideal for producing complex and detailed components with high precision.

Chemical etching is widely used in various industries, from aerospace to electronics. Its ability to produce detailed parts with tight tolerances and smooth finishes makes it a preferred method for manufacturers. In this guide, we will explore the chemical etching process, its benefits, applications, and future trends.

The Chemical Etching Process Explained

The chemical etching process begins with preparing the metal surface. A photosensitive resist is applied to the metal, and the desired pattern is transferred onto the resist using ultraviolet light. The exposed areas of the resist are then developed, revealing the metal underneath. The metal is then immersed in an etching solution, which dissolves the exposed areas.

This process is highly controlled to ensure precision and accuracy. Various factors, such as the concentration of the etching solution, temperature, and immersion time, are carefully monitored. Once the etching is complete, the resist is removed, leaving behind the desired metal pattern. This process can produce parts with intricate details, sharp edges, and smooth surfaces.

Chemical Etching

Benefits of Chemical Etching in Precision Metal Parts

Chemical etching offers several benefits over traditional machining methods. One of the most significant advantages is its ability to produce complex and detailed parts with high precision. This method can achieve tolerances of up to ±0.025 mm, making it ideal for applications requiring high accuracy.

Another advantage is the lack of mechanical stress on the material. Unlike mechanical machining, which can cause deformation and stress, chemical etching is a non-contact process. This ensures the integrity and quality of the final product. Additionally, chemical etching is cost-effective for both small and large production runs. The setup costs are relatively low, and the process can be easily scaled.

Applications of Chemical Etching in Various Industries

Chemical etching is used in a wide range of industries due to its versatility and precision. In the aerospace industry, it is used to produce lightweight and complex components for aircraft. The electronics industry utilizes chemical etching to create intricate circuits and components for devices. Medical device manufacturers use this process to produce precise and reliable surgical instruments.

Other industries, such as automotive, telecommunications, and defense, also benefit from chemical etching. The ability to produce parts with intricate designs and high precision makes it an invaluable tool for manufacturers. Whether it’s creating delicate sensor components or robust engine parts, chemical etching provides the necessary precision and quality.

Comparing Chemical Etching to Other Fabrication Methods

When compared to other fabrication methods, chemical etching stands out for several reasons. Traditional machining methods, such as CNC milling and laser cutting, involve physical contact with the material. This can lead to stress, deformation, and tool wear. Chemical etching, on the other hand, is a non-contact process, eliminating these issues.

Another advantage is the level of detail that can be achieved. Chemical etching can produce extremely fine features and intricate designs that are difficult or impossible with traditional methods. Additionally, chemical etching is more cost-effective for small to medium production runs due to lower setup costs and faster turnaround times.

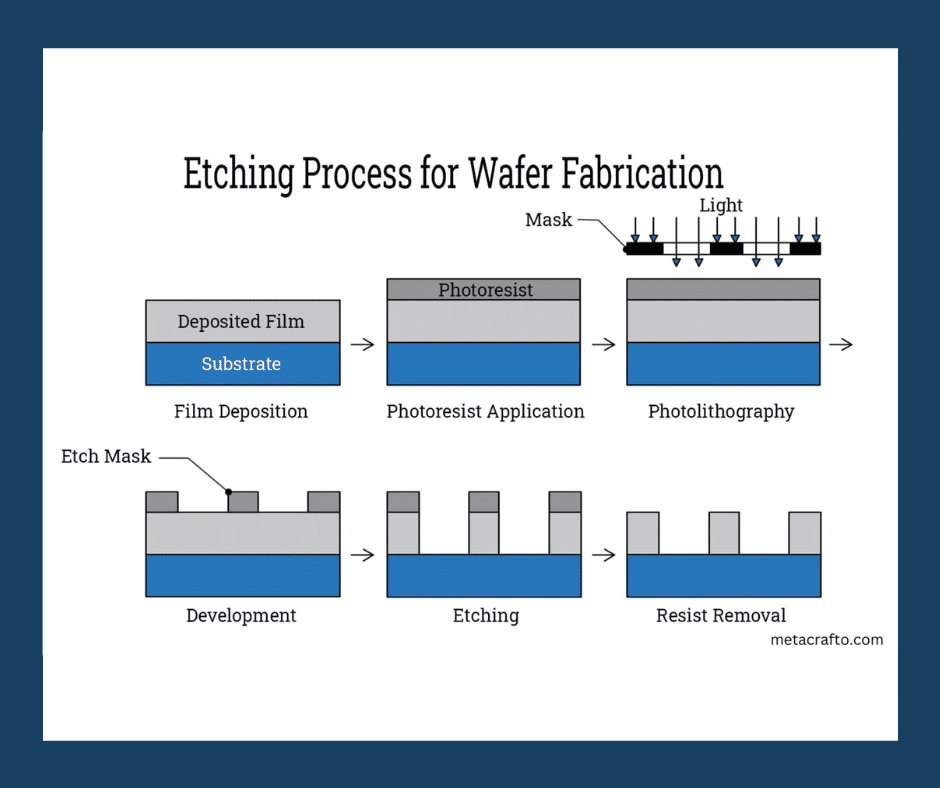

etching process for wafer fabrication

Future Trends in Chemical Etching Technology

As technology advances, the chemical etching process continues to evolve. One of the emerging trends is the use of environmentally friendly etching solutions. Researchers are developing new chemicals that are less harmful to the environment while maintaining high etching precision. Another trend is the integration of automation and digitalization in the etching process. Automated systems can improve efficiency, consistency, and reduce human error.

Moreover, advancements in material science are expanding the range of materials that can be etched. This opens up new possibilities for applications in various industries. The future of chemical etching looks promising, with continuous improvements and innovations driving the industry forward.


Chemical etching, a precise and versatile manufacturing process, is transforming industries with its ability to create intricate metal parts with high precision. From aerospace to medical devices, its applications are vast and varied. As technology and materials science advance, the future of chemical etching promises even greater innovations, making it an indispensable tool in modern manufacturing. With its numerous benefits, including cost-effectiveness and environmental advancements, chemical etching is poised to continue its growth and adoption across industries.
